BoxoUSA Pro Series Rolling Tool Box Review: Every Model, Every Spec, Honest Assessment

BoxoUSA has built a serious following among professional mechanics and garage enthusiasts by making heavy-duty rolling tool storage at a fraction of what the franchise brands charge. The Pro Series is the core of what they do; a lineup of rolling cabinets and service carts that ranges from mid-size 35-inch service carts up to full 72-inch flagship setups built to anchor a professional workspace for decades.

This is a complete breakdown of the Pro Series lineup as an authorized BoxoUSA dealer: construction specs, what distinguishes each model, who each one is actually built for, and what to know before ordering. If you already know you want BoxoUSA and you're trying to figure out which unit fits your garage and your workflow, this guide covers it.

The Foundation: What Every Pro Series Unit Is Built On

Before getting into individual models, the Pro Series construction spec matters because it runs consistently across the entire lineup. These are not marketing claims; they're verifiable specs you can compare directly against any competing brand at any price point.

18-gauge spot-welded steel with gusset-reinforced corners. This is the benchmark for professional-grade tool storage. 18-gauge is meaningfully stiffer than the 20- and 22-gauge steel in budget boxes. The spot welds plus gusset reinforcement at the corners mean the cabinet holds its geometry under full load, year after year.

Full-extension drawers with 100 lb. ball-bearing slides per drawer. Every drawer opens fully and carries 100 pounds on steel ball-bearing slides. Deeper drawers on larger models use double slides for additional support. Soft-close action with quick-release tabs keeps drawers from slamming and stays smooth even when loaded.

Anti-tip design. Only one drawer per bank opens at a time, preventing the forward tipping risk that comes with loading heavy drawers on an unsupported cabinet.

2,200 lb. total caster capacity. Four 5" x 2" heavy-duty casters; two fixed, two locking swivel. That rating accounts for a fully loaded cabinet and still leaves margin. The locking swivel setup gives you precise positioning and stable lockdown once you're where you want to be.

Dual locking system: key lock and resettable digit-lock combination. Both come on every unit. The combination lock is resettable so you can set and change your own code. The key lock gives a physical backup.

Chemical-resistant powder coating inside and out. Applied to all interior and exterior surfaces on every model. It resists chipping, scratching, and the chemical exposure that's normal in any working garage environment.

EVA foam drawer liners included. Every Pro Series unit ships with a full foam liner kit. Tools stay where you put them instead of sliding around, and the liners are compatible with BoxoUSA's precision-cut foam tool sets if you want to build out a full shadow board system later.

Limited lifetime warranty. BoxoUSA backs every Pro Series unit with a limited lifetime warranty. Not a 90-day coverage window and not a limited-parts deal. This is a meaningful statement about how the product is built.

The Pro Series Lineup: Model by Model

35" 5-Drawer Flip-Top Service Cart

The 35-inch service cart is a fundamentally different unit from a stationary bottom roll cabinet. It's built for mobility within a workspace; rolling alongside a lift, a work area, or a vehicle you're actively working on.

External dimensions: 35"W x 20"D x 38"H. Weight: 203 lbs. Storage capacity: 13,915 cubic inches across 3,245 square inches of drawer space. Five drawers, each on 100 lb. ball-bearing slides.

The defining feature is the flip-top lid with dual gas struts; it opens and stays open without fighting you. Inside the top is a 110V power strip with two USB ports, so power is right where you're working without cords crossing the shop floor. Drawer trim comes in red, blue, or orange anodized handles. The pull handle mounts on either the left or right side, which matters when you're configuring around a specific work layout.

Best for: Technicians working alongside a lift, anyone who needs mobile tool access rather than stationary storage, professional setups where power at hand is a priority.

45" 11-Drawer Rolling Cabinet

The 45-inch is the mid-size entry in the Pro Series rolling cabinet lineup; more storage depth and width than the 26-inch without committing to the full footprint of a 72-inch unit.

Bottom cabinet dimensions: 44-3/8"W x 18-3/4"D x 38-5/8"H. The 11-drawer layout gives you a range of drawer depths for different tool categories. The 45-inch pairs with the BoxoUSA 8-drawer top chest to form a full combo, or is available as a standalone bottom roll cabinet. There is also a 45-inch 12-drawer workstation variant with a stainless steel work surface and four-sided drawer access, which is a different use case built more around a fixed workstation than a rolling cabinet.

Best for: Mechanics stepping up from a smaller unit who aren't ready to commit to a 72-inch footprint, two-car garage setups, anyone wanting a full combo with top chest at a mid-size price point.

53" 12-Drawer Rolling Cabinet

The 53-inch sits between the 45-inch and 72-inch in both footprint and storage capacity. It weighs approximately 285 lbs. and provides 15,614 cubic inches of storage across 4,275 square inches of drawer space. The same 18-gauge construction, 100 lb. slides, and 2,200 lb. caster rating as the rest of the lineup.

The 53-inch is available as a standalone bottom roll cabinet or as a full combo with the matching 20-drawer top chest configuration. For mechanics with a mid-size tool collection who want more capacity than the 45-inch without the full 72-inch commitment, this is the natural fit.

Best for: Mechanics with a mid-to-large tool collection, garages where 72 inches of cabinet width is too much, anyone wanting a full combo at a mid-size scale.

72" 14-Drawer Rolling Tool Box

The 72-inch is the flagship of the Pro Series lineup. It is the unit most serious mechanics compare when they're ready to make a long-term tool storage investment.

Base cabinet dimensions: 72"W x 24"D x 41-11/16"H. Weight: approximately 285 lbs. Fourteen full-extension drawers, with double slides on the deeper drawers to support heavier tool loads. Two 110V power strips with USB connectors built in; one on the left exterior panel for quick tool charging access, one integrated into a deep interior drawer for out-of-sight power tool charging.

Available in gloss black with grey drawers or gloss white with black drawers, with red or blue trim options.

At 72 inches wide, this cabinet runs a dedicated drawer for every tool category with space remaining for the foam insert system. This is the starting point for a permanent, anchor-piece garage storage setup.

Best for: Professional automotive technicians, serious home mechanics with a complete tool collection, anyone building a permanent garage storage system around a single high-capacity unit.

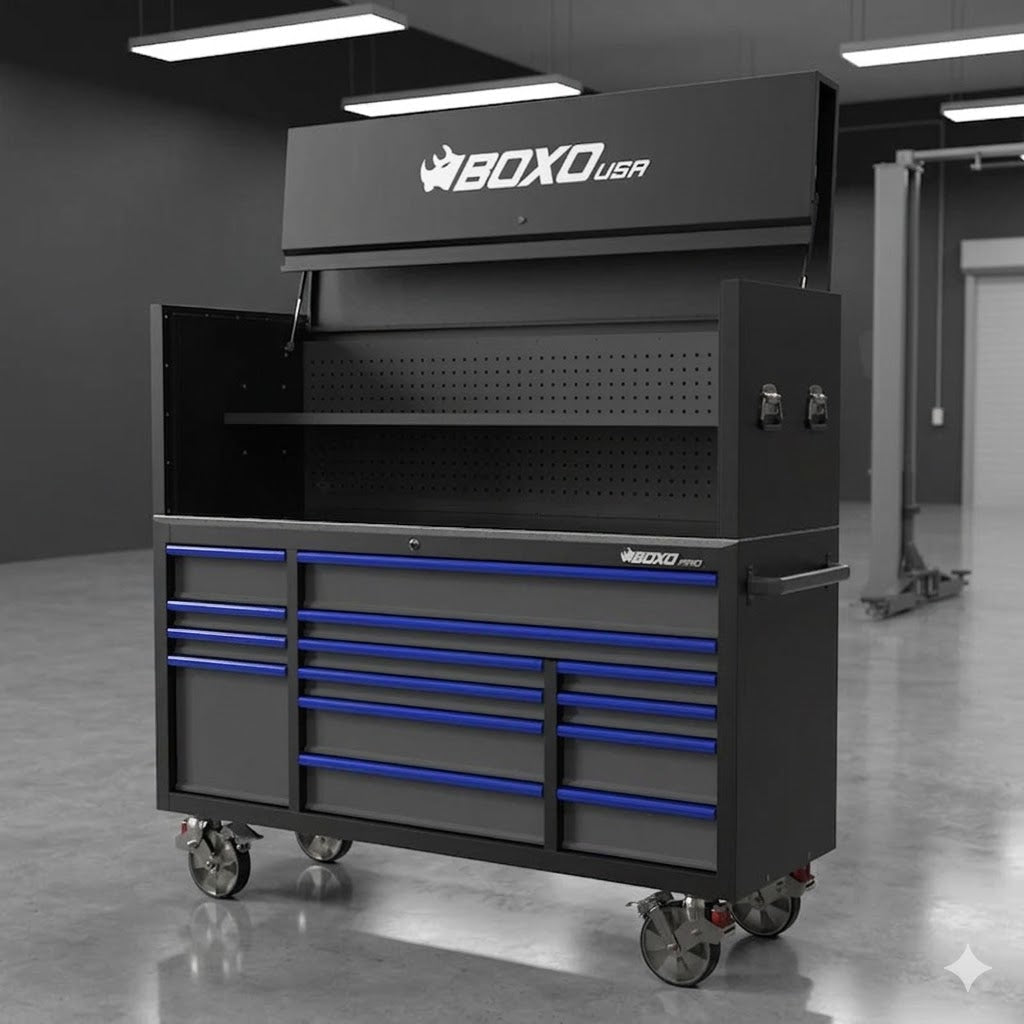

72" 14-Drawer Rolling Tool Box with Garage Top

This is the complete setup: the 72-inch base cabinet paired with the matching garage top hutch. The two units are designed to align and work as an integrated system.

The base cabinet carries all the same specs as the standalone 72-inch: 72"W x 24"D x 41-11/16"H, approximately 285 lbs., 14 full-extension drawers, double slides on deeper drawers, anti-tip design, dual integrated 110V power strips. The garage top adds enclosed overhead storage with reinforced drop-top panels and double-wall side panels, plus its own lockable access. Together they form a floor-to-ceiling-enclosed tool storage system that holds an entire professional collection in one footprint.

The black configuration runs a black body with grey drawers. A white configuration is also available.

Best for: Anyone who wants a complete, matched professional tool storage system in a single purchase. This is the permanent setup for a dedicated workspace.

BoxoUSA Pro Series vs. Snap-On and Matco

The short answer: the Pro Series uses the same 18-gauge steel construction as what the franchise brands offer at two to three times the price. The 100 lb. drawer slides, 2,200 lb. caster rating, and dual locking system are all comparable specs to what you'll find in much more expensive franchise cabinets.

What you're not paying for with BoxoUSA is the distribution model. Snap-On and Matco move product through a financed route sales structure. That infrastructure has a cost, and it shows up in the price. BoxoUSA sells through authorized dealers at MAP pricing with freight direct to your door.

For a deeper look at that specific matchup, see our post BoxoUSA vs. Snap-On Tool Boxes: Is the Premium Worth It in 2026?.

Ordering from an Authorized Dealer

BoxoUSA is sold through an authorized dealer network. The limited lifetime warranty, correct product configuration, and factory-backed freight handling all require going through an authorized channel. Oura Decor orders direct from BoxoUSA on every unit.

Every Pro Series rolling cabinet ships via freight carrier given the size and weight involved. When you order through Oura Decor, freight delivery is included. You will receive a scheduling call before your delivery window. Plan to have two people available when the unit arrives, inspect the packaging before signing the delivery receipt, and note any visible damage at that time.

Browse the full BoxoUSA Pro Series lineup: Shop Rolling Tool Boxes

Frequently Asked Questions

What gauge steel is the BoxoUSA Pro Series built from? Every Pro Series unit is built from 18-gauge spot-welded steel with gusset-reinforced corners. 18-gauge is the standard for professional-grade rolling tool storage and is a meaningful step up in rigidity over the 20- and 22-gauge steel used in budget cabinets.

How much weight can each drawer hold? Each drawer is rated at 100 lbs. on full-extension steel ball-bearing slides. The deeper drawers on larger Pro Series models use double slides to support heavier loads without binding or sagging under weight.

What is the caster capacity on the Pro Series? All Pro Series rolling cabinets use four 5" x 2" heavy-duty casters rated at 2,200 lbs. total capacity; two fixed, two locking swivel.

Does the BoxoUSA Pro Series include a warranty? Yes. Every Pro Series tool box is backed by BoxoUSA's limited lifetime warranty. This covers the product itself from the manufacturer.

Which size should I buy? The 35-inch service cart is built for mobility alongside a lift or active work area, not stationary storage. The 45-inch and 53-inch are mid-size options for mechanics who want serious capacity without a full 72-inch footprint. The 72-inch is the right call for a permanent tool storage setup with a full collection to house. The 72-inch with garage top is for anyone who wants a complete, floor-to-counter enclosed system in one purchase.

Do the Pro Series cabinets have a power strip built in? The 35-inch flip-top service cart and the 72-inch rolling cabinet both include integrated 110V power strips with USB connectors. The 72-inch has two; one on the exterior panel and one in a deep drawer. The smaller units (26-inch, 45-inch, 53-inch) do not include integrated power strips.

How does the anti-tip system work? The Pro Series uses a design where only one drawer per bank can be open at a time. This prevents the forward tipping hazard that occurs when multiple heavy drawers are extended simultaneously.

What colors are available? The Pro Series is available in gloss black with grey drawers and gloss white with black drawers. Drawer trim handles come in red, blue, or orange anodized options depending on the model.

Does BoxoUSA ship freight? Yes. Rolling cabinet units ship via freight carrier due to size and weight. When ordering through Oura Decor, freight delivery is included. You'll receive a scheduling call before delivery, and the carrier will bring the unit to your door. Have two people available when it arrives.

Can I add a top chest to any of the rolling cabinets? Yes. BoxoUSA makes matching top chests for the 45-inch and 53-inch bottom roll cabinets, as well as the garage top for the 72-inch. Each is sized and aligned specifically for its matching base unit.

Oura Decor is an authorized BoxoUSA dealer. Every order ships direct from BoxoUSA with the full factory warranty and freight delivery included. Shop the full BoxoUSA Pro Series lineup.
